Week 2: Block Diagram and Flow Chart

Week no: 2
Date: 2/2/2012


Title of Activities: Block Diagram and Flow Chart


Objective:


1) To make this project is easy to understand and look reliable.
2) To test write the program in the proper way.


Content / Procedure:


1) Making the block diagram from input processor & output.
2) To make a flow in the proper way to write the program.
3) Understanding how the project operate by referring to the flowchart & block diagram.


Result and Analysis :


1) By using a block diagram to understand this project more easier.
2) The flowchart is made to start the program writing. 3) Understanding how the project operate by referring to the flowchart & block diagram.
2) Thus, the flowchart is really important in this project. So that, the progress will be going smoothly without any disturbances.


Conclusion :


1) By using block diagram & flowchart, it can give more understanding about the flow of the program to finish up this project well.


2) Thus, the flowchart is really important in this project. So that, the progress will be going smoothly without any disturbances.




Flow of the Project:

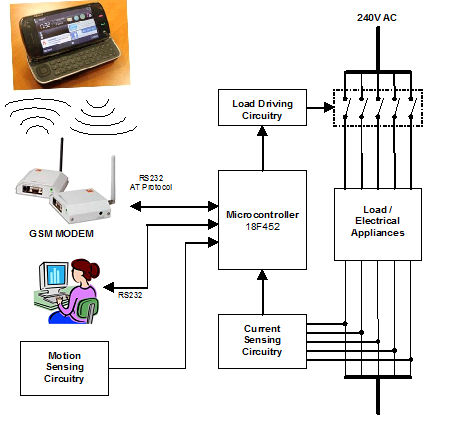

Block Diagram of the Project:
